NEBULIZER SPECIFICATIONS




All Burgener Nebulizers use HP PFA Teflon for the inner capillaries (sample passage and gas passage and orifice), except for the Ari Mist which has PTFE inner capillaries, and the X-175, NX-175, SC-175, Mira Mist CE, and Enya Mist which have PEEK inner capillaries and the SS-50 which has SS capillaries.

Most Burgener Nebulizers are 100% Teflon except for the removable gas fittings, but the PEEK Mira Mist and the Ari Mist use PEEK for the outside body, and Teflon for the inner capillaries.

All Burgener Nebulizers use the patented Enhanced Parallel Path Method of creating a mist. None of our nebulizers have suction, so liquids must be pumped to the nebulizers.

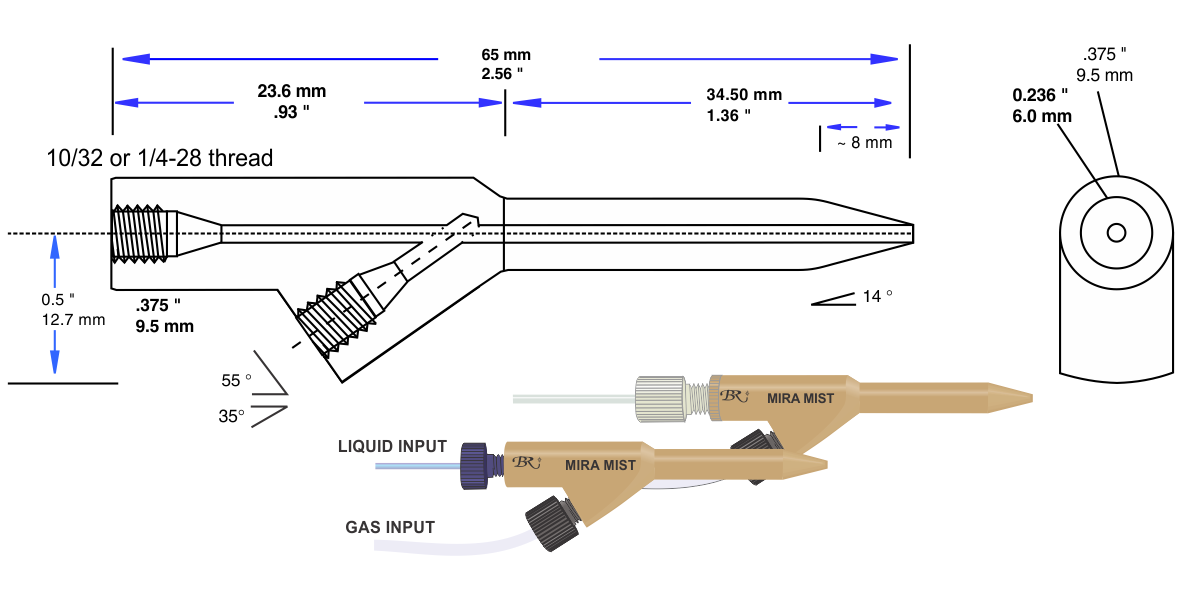

All analytical Burgener Nebulizers have nose lengths of 34 mm, nose diameters of 6.0 mm, and overall nebulizer lengths of 65 mm. We supply gas lines with 2 mm X 1 mm Teflon gas lines, attached to the nebulizers by 10/32 Idex fingertight style fittings. We have a wide range of adapters to fit 4mm, 1/8”, 1/4” and various quick release gas line attachments used on various instruments.

Standard Nebulizers
Model Body
Material		 psi
Operating
Pressure
at .8 l/min 		Sample Flow
microliters/min		 Sample
Capillary I.D.
microns
Pluggable		 Appropriate
Chamber		 Comments
PEEK
Mira Mist		 PEEK 35-45 200 - 2500 500 possible
not likely		 All High Salts, Medium Particles, excellent %RSD (< .7%), very good sensitivities and excellent long term stability.
Not appropriate for concentrated acids, some organics.
Teflon
Mira Mist		 PTFE 35-45 200 - 2500 500 possible
not likely		 All High Salts, Medium Particles, excellent %RSD (< .7%), very good sensitivities and excellent stability.
Excellent for all acids, all organics.
T 2100 PTFE 35-45 500 - 2500 750 Nearly Impossible All High Salts, Particles, excellent %RSD (< 1%), very good sensitivities and excellent stability.
Excellent for all acids, all organics.
Aureus HP PFA 35-45 50 - 1000 250 possible All Medium Salts, NO Particles, good %RSD (< 1%), Excellent sensitivities.
Ari Mist PEEK 35-45 50 - 1000 225 possible All Medium Salts, NO Particles, good %RSD (< 1%), Excellent sensitivities.

Micro Flow for alcohol, organics: 50 ul/min +



Nano and Micro Low Flow Nebulizers
Model Body
Material		 psi
Operating
Pressure
at .8 l/min 		Sample Flow
microliters/min		 Sample
Capillary I.D.
microns
Pluggable		 Appropriate
Chamber		 Comments
Mira Mist - CE PEEK 75-90 2 - 2500 500 possible
not likely		 Straight preferred
such as
Scott Double Pass		 Designed for CE / ICP / MS. Allows CE capillary to extend to tip. Also runs as excellent nebulizer without CE capillary.
Aureus HP PFA 35-45 50 - 1000 250 possible All Medium Salts, NO Particles, good %RSD (< 1%), Excellent sensitivities.
PFA 250 PEEK & PFA 35 50 - 2000 250 possible
not likely		 All Medium Salts, small Particles, good %RSD (< 2%), Excellent sensitivities and low flow capable. Ultra Clean PFA construction.
All wetted parts are PFA.
PFA 260 PEEK & PFA 50 50 - 2000 250 possible
not likely		 All Medium Salts, small Particles, good %RSD (< 2%), Excellent sensitivities and low flow capable. Ultra Clean PFA construction.
All wetted parts are PFA.
X - 175 PTFE & PEEK 40 50 - 1000 175 easy All standard Medium Salts, NO Particles, good %RSD (< 1%), Excellent sensitivities.
Designed for ICP/MS low flow applications. Greater stability than Ari Mist HP
Can also do Micro Flow for alcohol, organics: 5 ul/min +
NX - 175 PTFE & PEEK 30 50 - 1000 175 easy All standard Medium Salts, NO Particles, good %RSD (< 1%), Excellent sensitivities.
Designed for NexION and Bruker/Varian ICP/MS low flow applications with 1.2 L/min gas flow at 50 psi. Greater stability than Ari Mist HP
Can also do Micro Flow for alcohol, organics: 5 ul/min +
SC - 175 PTFE & PEEK 50 50 - 1000 175 easy All standard Medium Salts, NO Particles, good %RSD (< 1%), Excellent sensitivities.
Designed for NexION and Bruker/Varian ICP/MS low flow applications with 1.2 L/min gas flow at 50 psi. Greater stability than Ari Mist HP
Can also do Micro Flow for alcohol, organics: 5 ul/min +
ENYA Mist PTFE 50 0.2 - 200 60 easy Straight preferred
such as
Scott Double Pass		 Medium Salts, NO Particles, good %RSD (< 2%), Excellent sensitivities but low flow lowers intensities.
Tiny sample passage allows for split flow - pump 30 - 50X what actually arrives in the nebulizer. The rest goes to the drain. Minimizes oxides in ICP/MS.



Special Purpose Nebulizers
Model Body
Material		 psi
Operating
Pressure
at .8 l/min 		Sample Flow
microliters/min		 Sample
Capillary I.D.
microns
Nose Length
Nose Diameter
Overall Length
Standard Gas Line
Pluggable		 Appropriate
Chamber		 Comments
SS 50 Stainless Steel Requires ~ 2 L/min
at 50 psi		 10 - 5,000 1800 2" - 18" 0.125" Varies 1/8" No Special High Temperature, low to high flow. Commonly used for material coatings and nano particle production.
LB 30 PTFE or Peek or Any material Requires ~ 15 L/min
at 40-50 psi		 2,000 - 30,000 1000 12 mm 1/4" pipe thread Varies 1/8" No Industrial High Sample Flow, excellent mist.
Runs 2 to 50 ml/min, with optimum from 5 to 35 ml/min.
Designed for industrial applications, not for ICP analysis.
LB 80 PTFE or Peek or Any material Requires ~ 40 L/min
at 40-50 psi		 500 - 80,000 3000 100 mm
4"		 12 mm
0.5"		 Varies 3 mm No Industrial High Sample Flow, excellent mist.
Runs .5 to 80 ml/min, with optimum from 5 to 70 ml/min.
Designed for industrial applications, not for ICP analysis.
LB 100 PTFE or Peek or Any material Requires ~ 50 L/min
at 45-55 psi		 1,000 - 100,000 3000 100 mm
4"		 12 mm
0.5"		 Varies 3 mm No Industrial High Sample Flow, excellent mist.
Runs 1 to 100 ml/min, with optimum from 5 to 80 ml/min.
Designed for industrial applications, not for ICP analysis.


Teflon is a registered trademark of E.I. DuPont De Nemours Company and in all cases in this web page refers to PTFE (PolyTetraFluoroEthylene)
